Security Model
The Infuse-IoT security model has been designed to enable the platform Platform Design Goals while maintaining confidentiality and authenticity of data to the greatest extent possible.
The Infuse platform splits its communication security into two authentication levels, both integrated on top of the ePacket API.
Common Parameters
Algorithms
The Infuse platforms default payload encryption protocol is ChaCha20-Poly1305, an Authenticated-Encryption Associated-Data (AEAD) algorithm that is more performant than alternative like AES-GCM while also being supported by industry standard cryptography libraries like MbedTLS and PSA.
Asymmetric key agreement is perfomed through the Elliptic-Curve Diffie-Hellman (ECDH) protocol. The selected curve is Curve25519, which is well supported, more efficient than the standard prime curves (P-256, etc), and free from any doubt about standards interference. Curve25519 also has a more compact public key representation, 32 bytes instead of 65 bytes for P-256.
Key derivation is performed by the HKDF algorithm.
Note
Faster algorithms than ChaCha20-Poly1305 exist, like the NIST LWC competition winner ASCON. If and when these algorithms make it into industry standard libraries we will consider a transition.
Indirect usage of keys
The root shared secret between communications partipants is never used to directly encrypt data. This limits the impact of any key recovery attack against transmitted data, as recovering the data encryption key does not lead to the compromise of the root shared secret. For interfaces where the derived encryption key rotates automatically with time, this also limits the duration over which a recovered key can usefully attack the network.
Key Derivation
Key Rotation
All keys used for encrypted communications can be rotated at any time after system deployment. Key rotation may incur a communication overhead for either participant to recompute the shared secret. Key rotation may require an over-the-air upgrade of the device firmware, depending on the key to be rotated.
Key Identification
The key used to encrypt packets should be identifiable from the packet contents. This enables devices to skip the expensive process of attempting to decrypt a packet if it cannot succeed.
Note
Identifying the key is different from transmitting the key. The key identity is either a numeric identifier for networks or a public key hash for devices.
Network Encryption
Network encryption is used if the data to be transmitted is intended for use in a local context, i.e. without cloud involvement. The most common use case for this is Bluetooth advertising broadcast, but also includes Bluetooth GATT communications between two devices.
Confidentiality
Each network shares a single common root key, present on every device in the network. The network root key is used to derive a network key for each communications interface, which is valid for some duration of time.
The primary risk of network encryption as implemented is that a hardware attack against any device in the network (ROM readback, decapping, etc) can compromise the security of the entire network. For this reason, network authenticated packets should only be used for informative purposes. They should not be able to reconfigure the device, trigger destructive actions, or any other similar action.
To mitigate the cost of recovering from such an attack, the root network key can be swapped out with a single device authenticated RPC at any time.
This vulnerability cannot be eliminated without violating the platform Platform Design Goals. Primarily those of Intermittent connectivity and Device-to-Device communications. In order for devices to broadcast encryption information to each other without access to some external source of truth, the only option is for each device to share some common secret.
Authenticity
While data encrypted to the network level is encrypted with a shared common key, the message as a whole can still be signed with a MAC based on a private device key. This enables the Infuse cloud to validate the authenticity of the sending device despite the shared encryption key.
Individual devices cannot valiate the MAC of received packets however, as they do not have access to the cloud private keys that are used to derive the remote devices signing key.
Warning
The MAC associated with a message may be truncated from its ideal size depending on the interface due to payload size considerations. If truncated, the authenticity guarantees are neccesarily weakened, potentially to the point that collision attacks are feasible. This is considered an acceptable tradeoff given the reduced sensitivity of any data encrypted to the network level.
Key Rotation
Key rotation is achieved via setting a new root secret and network identifier from the cloud.
Device Encryption
Device encryption is used for data intended for a specific device, generated by an authorised user. Device encryption is required for any commands that reconfigure the device, or have potential harmful side effects.
Confidentiality
Data encrypted at the device level uses a symmetric key established using the standard ECDH protocol. The symmetric key is therefore never transmitted over the network or stored in ROM, limiting the opportunity for any attacker to recover the key.
Authenticity
Devices can be sure of the cloud servers authenticity through the use of a static public key, as any data that successfully decrypts was generated by an entity with access to the corresponding private key.
Devices are expected to know the cloud public key, which is static, while the cloud is expected to dynamically query the device public key when it detects a change or observes the device for the first time.

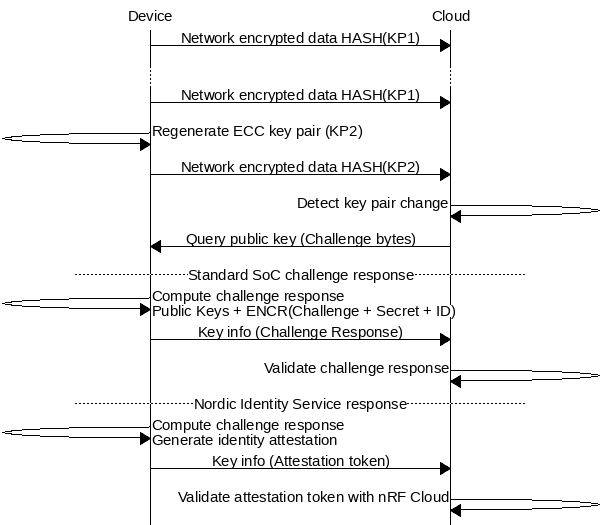

Ensuring the authenticity of devices is more complicated, as anyone can generate a valid shared secret under ECDH. Without access to a certificate authority (see Non-IP connectivity), an alternate validation scheme must be used. Because the device public key must be known by the cloud in order to generate the shared secret, this provides a natural time to perform identity verification.
In the same response that contains the device public key, the device must also provide some piece of information that Infuse cloud can use to validate that the key is being reported by the expected device.
Newer Nordic SoCs can make use of the Nordic Identity Service to do this, as they contain a permanent ECC key pair which can be used to validate device identity. Other SoCs must be explicitly provided with a secret value by Infuse cloud at the point of Device Provisioning. This value can then be encrypted with the proposed shared secret (to prevent exposing the value) and provided to Infuse cloud as proof of identity. Compromise of the value would allow the device to be impersonated, but would not allow decryption of the real devices communications.
![msc {
Device,Cloud;
Device=>Cloud [ label = "Network encrypted data HASH(KP1)" ];
...;
Device=>Cloud [ label = "Network encrypted data HASH(KP1)" ];
Device=>Device [ label = "Regenerate ECC key pair (KP2)" ];
Device=>Cloud [ label = "Network encrypted data HASH(KP2)" ];
Cloud=>Cloud [ label = "Detect key pair change" ];
Cloud=>Device [ label = "Query public key (Challenge bytes)"];
--- [ label = "Standard SoC challenge response" ];
Device=>Device [ label = "Compute challenge response\nPublic Keys + ENCR(Challenge + Secret + ID)"];
Device=>Cloud [ label = "Key info (Challenge Response)" ];
Cloud=>Cloud [ label = "Validate challenge response" ];
--- [ label = "Nordic Identity Service response" ];
Device=>Device [ label = "Compute challenge response\nGenerate identity attestation"];
Device=>Cloud [ label = "Key info (Attestation token)" ];
Cloud=>Cloud [ label = "Validate attestation token with nRF Cloud" ];
}](../_images/mscgen-0f8019e6bacd8f514c962a0d270af18cc22a7310.png)
Note
By definition the device public key is not a confidential secret. Cloud services can therefore query the public key and perform identity validation at the network encryption level.
Key Rotation
As per standard ECDH, the symmetric key is the product of the local public + private key and the remote public key. There are 3 potential components that can be compromised.
Shared symmetric key
Device private key
Cloud private key
If the shared symmetric key or device private key are suspected to be compromised, the device can regenerate a new EC key-pair. This will automatically change the shared symmetric key in an unpredicatable fashion, securing future communications. If rotated autonomously (without cloud involvement), the cloud can automatically determine the key-pair has changed through observing the public key hash that is part of the message header. All that is required to re-established secure communications is to query the public key of the device.
If the cloud private key is suspected or known to be compromised, the devices knowledge of the cloud public key must be updated in order to re-establish secure communications. This can be done temporarily through the Key-Value Store, with a more permanent value change triggered through an OTA update.
Note
Compromise of the cloud private key is a worst-case scenario that is not expected to occur in practice. If it does occur, all customers will be immediately contacted with additional details through all possible methods.
