TDF Viewers
Three separate tools are available to view and record local Tagged Data Format (TDF) packets.
Note
TDF tools all require a running instance of a Gateways bridge.
TDF localhost
The localhost tool records the latest values of TDF packets from each devices and displays them in a table form through a local web browser. The table view is built on top of Tabulator, providing rich filtering capabilities.
infuse localhost

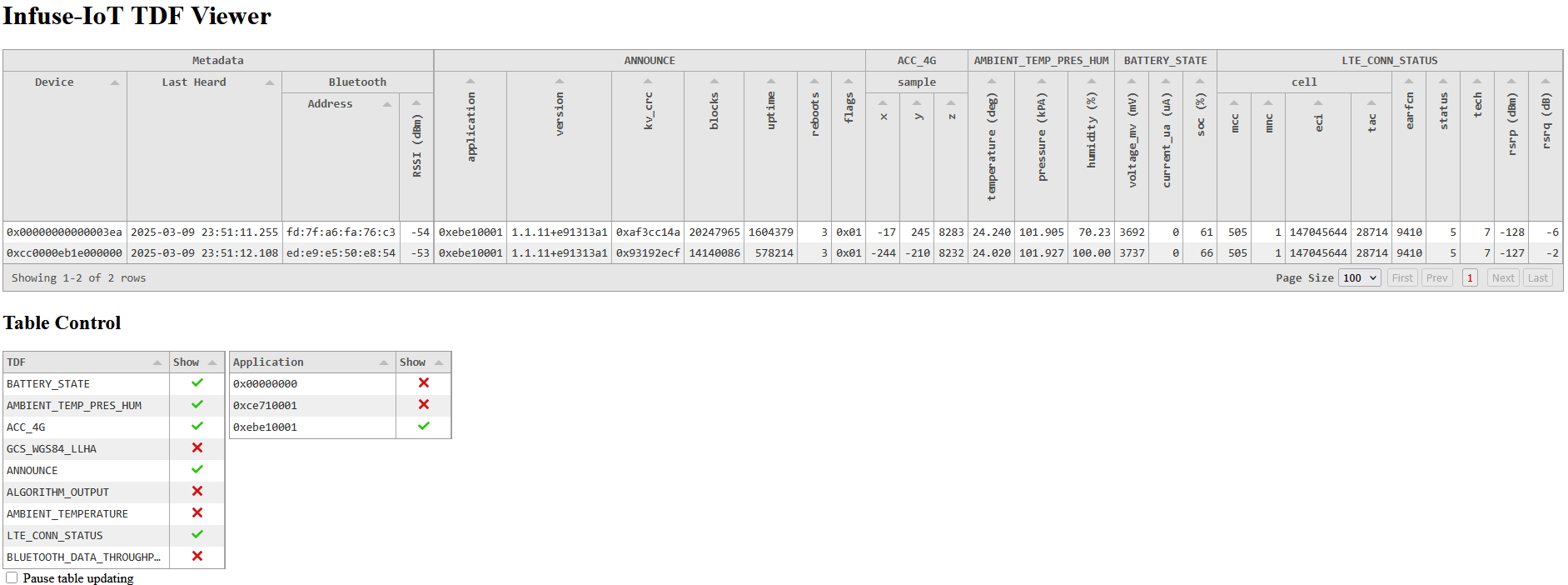

Example infuse localhost webpage display
TDF list
The TDF list tool simply prints received TDFs to the terminal with formatting.
infuse tdf_list
Infuse ID: 00000000000003ea
Interface: BT_ADV
Address: fd:7f:a6:fa:76:c3 (random)
RSSI: -56 dBm
----------------------- ------------------------- ----------------- -------------- -----
2025-03-09 23:55:57.680 ANNOUNCE application 0xebe10001
version.major 1
version.minor 1
version.revision 11
version.build_num 0xe91313a1
kv_crc 0xaf3cc14a
blocks 20248669
uptime 1604665
reboots 3
flags 0x01
2025-03-09 23:55:57.680 ACC_4G sample.x -16
sample.y 242
sample.z 8283
2025-03-09 23:55:57.680 LTE_CONN_STATUS cell.mcc 505
cell.mnc 1
cell.eci 147045644
cell.tac 28714
earfcn 9410
status 5
tech 7
rsrp -127 dBm
rsrq -5 dB
2025-03-09 23:55:57.680 BLUETOOTH_DATA_THROUGHPUT address.type 0
address.val 0x60fcf10031da
throughput 323 B/sec
...
TDF CSV
The TDF CSV tool records all received TDF packets to CSV files.
infuse tdf_csv
Each unique Infuse ID and TDF pair results in a dedicated file, e.g
cc0000eb1e000000_BATTERY_STATE.csv. If a file already exists, new data
is appended to it.
Example CSV content for
BATTERY_STATE TDFstime,voltage_mv,current_ua,soc
2025-03-10T00:00:35.671640,3737,0,66
2025-03-10T00:00:37.428005,3737,0,66
2025-03-10T00:00:38.531742,3737,0,66
2025-03-10T00:00:40.439066,3737,0,66
